Product overview
Professional-grade supply for HVAC/R service and repeat procurement.

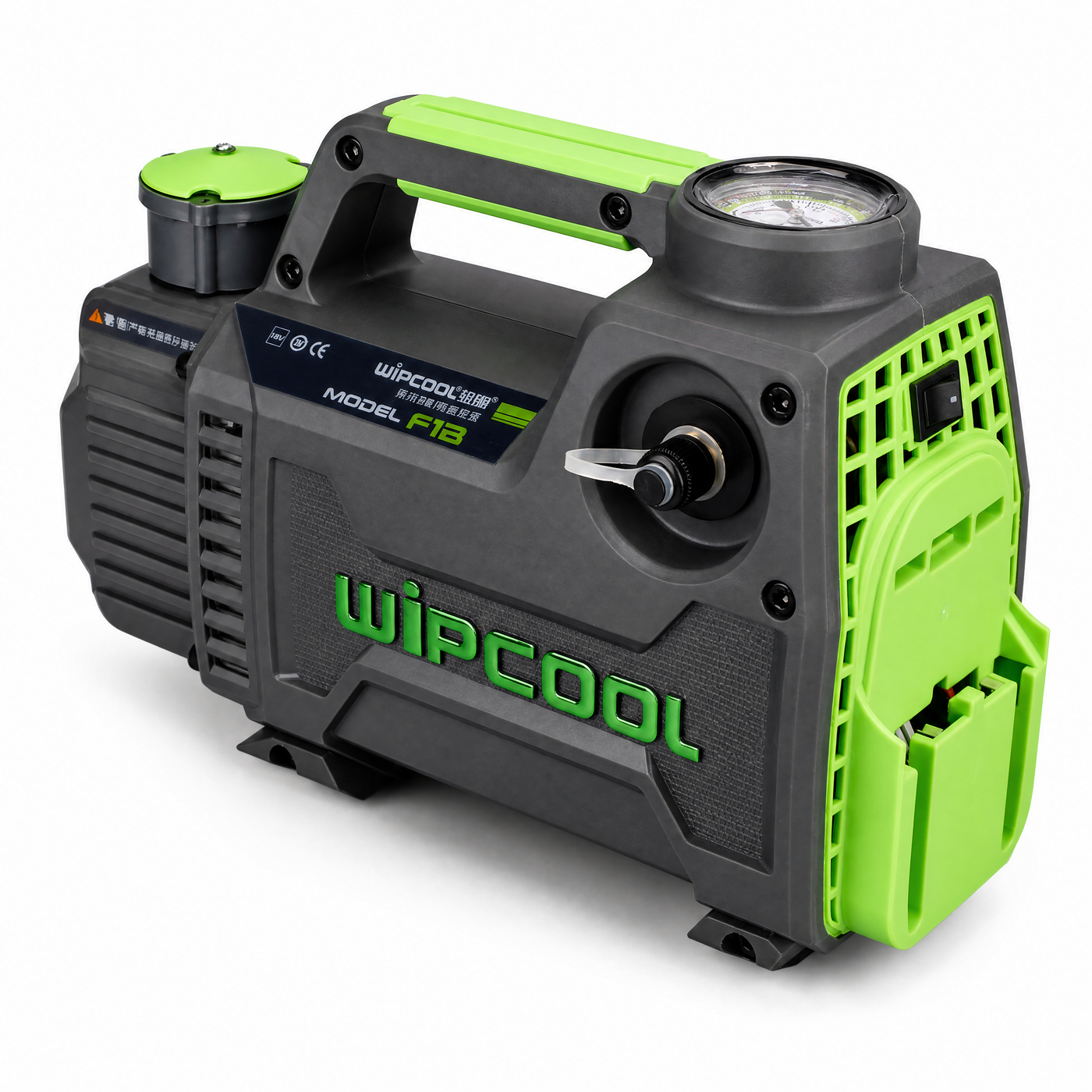

WIPCOOL F Series — Cordless Freedom, Professional Vacuum
The WIPCOOL F Series delivers professional-grade vacuum performance in a cordless, portable package. Powered by an 18V lithium platform, these pumps are purpose-built for HVAC, refrigeration, and on-site service work — where mobility and reliability are non-negotiable.
Key Features
- 18V Cordless Operation — No cords, no generator. True freedom on the job site.
- High-Efficiency Vacuum — Fast evacuation with deep ultimate vacuum down to 2×10⁻¹ Pa (2F2BR).
- Multi-Platform Battery Compatibility — Works with AEG/Ridgid 18V batteries via adapter (battery not included).
- Lightweight & Portable — From just 4.5 kg (F1B) makes it easy to carry between jobs.
- Durable Construction — Rugged housing with efficient heat dissipation for continuous operation.
- Versatile Connections — 1/4" SAE (F1B) or dual 1/4" & 3/8" SAE ports (F2BR / 2F2BR).
Technical Specifications
| Specification | F1B | F2BR | 2F2BR |
|---|---|---|---|
| Voltage | DC 18V (AEG / Ridgid Interface) | ||
| Ultimate Vacuum | 2 Pa | 2 Pa | 2 × 10⁻¹ Pa |
| Power Input | 1/4 HP | 1/3 HP | 1/2 HP |
| Pumping Speed | 1 L/s (3.6 m³/h) | 2 L/s (7.2 m³/h) | 2 L/s (7.2 m³/h) |
| Oil Capacity | 200 ml | 580 ml | 450 ml |
| Weight (without battery) | 4.5 kg | 6.5 kg | 7.5 kg |
| Dimensions (mm) | 289 × 113 × 198 | 339 × 130 × 225 | 339 × 130 × 225 |
| Inlet Connection | 1/4" SAE | 1/4" & 3/8" SAE | |
| Runtime (4.0Ah battery) | ~45 min | ~40 min | |
| Charge Time (4.0Ah) | ~210 min | ||
Why Choose the F Series?
The F Series redefines what a portable vacuum pump can do. Whether you need a lightweight unit for quick service calls (F1B), a balanced all-rounder with higher throughput (F2BR), or a deep-vacuum workhorse for demanding refrigeration jobs (2F2BR) — there is an F Series pump built for your workflow.
Important Note
⚠ This product is sold as a bare tool — battery and charger are NOT included. If you already own compatible 18V lithium batteries (AEG / Ridgid platform), you can purchase the corresponding battery adapter separately.
